7 Tesla Magnetotherapy Machine with Pneumatic Shockwave Therapy for Physiotherapy

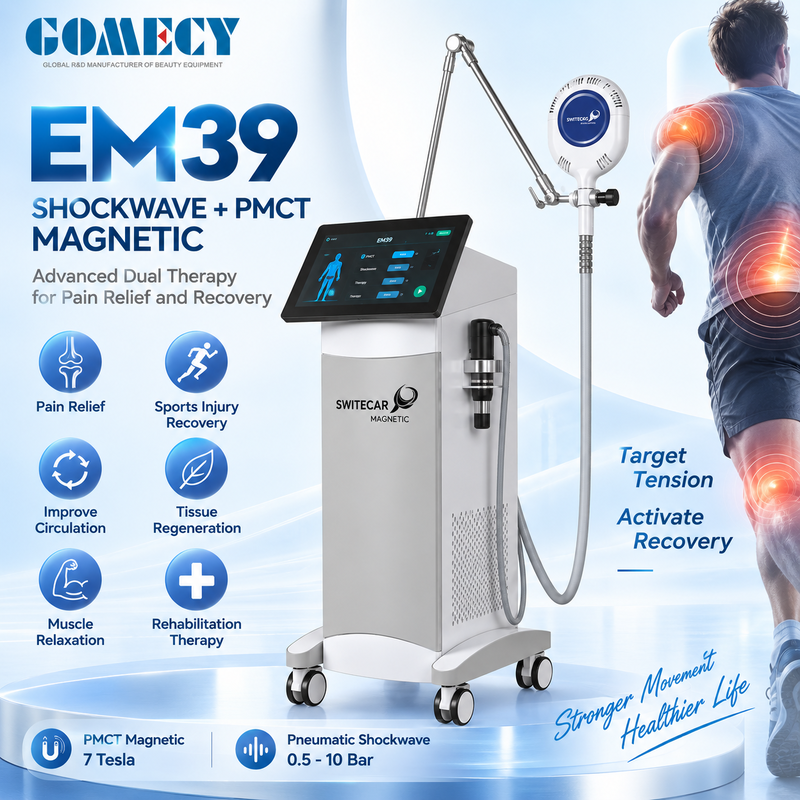

The GMS-EM39 Shockwave + PMCT Magnetic System integrates pneumatic shockwave and pulsed magnetic technologies into one vertical workstation. The shockwave module delivers adjustable mechanical pressure waves through interchangeable applicator heads, while the magnetic module generates pulsed magnetic fields for non-contact application. The system is designed for professional physiotherapy centers, rehabilitation facilities, sports recovery studios and wellness applications.

1. Quick Details

• Model: GMS-EM39
• Product Type: Shockwave + Pulsed Magnetic Therapy System
• Technology: Pneumatic Shockwave + Pulsed Magnetic Field
• Rated Power: 1800W
• Display: 15.6-inch Touch Screen
• Magnetic Induction Intensity: Up to 7T
• Magnetic Frequency: 1-100Hz
• Magnetic Field Pulse Width: 200μs
• Shockwave Frequency: 1-20Hz
• Shockwave Energy Setting: 0.5-10.0Bar
• Shockwave Applicator Heads: 7 pcs
• Shockwave Head Sizes: 6 / 10 / 15 / 20 / 25 / 30 / 40mm
• Operating Voltage: 110V / 220V
• Fuse: 15A
• Net / Gross Weight: 42kg / 68kg
• Package Size: 118 × 55 × 57cm
• Operation Modes: Magnetic Auto Mode / Manual Mode
• Application Type: Contact Shockwave + Non-contact Magnetic Application

2. Main Uses

Physical Therapy Support, Sports Recovery, Rehabilitation Support, Muscle Relaxation, Body Recovery, Joint Area Care, Soft Tissue Care, Mobility Support, Post-Exercise Recovery, Professional Body Care.

Suggested application areas: Shoulder, Back, Lumbar Area, Elbow, Wrist, Hip, Thigh, Knee, Ankle and Foot.

3. Core Specifications

• 7 Tesla Pulsed Magnetic Technology

The magnetic module provides magnetic induction intensity up to 7 Tesla with an adjustable frequency range of 1-100Hz. The applicator can be positioned close to the selected body area without requiring direct skin contact.

• 0.5-10 Bar Pneumatic Shockwave

The pneumatic shockwave system provides an adjustable output range of 0.5-10.0Bar and frequency from 1-20Hz, allowing operators to select settings for different body areas and application requirements.

• 7 Interchangeable Shockwave Heads

Seven applicator sizes are available: 6mm, 10mm, 15mm, 20mm, 25mm, 30mm and 40mm. Different head forms support different contact areas and application depths.

• 15.6-Inch Touch Screen

The large touchscreen interface supports parameter adjustment, body-area selection and operating controls for both technologies.

4. Working Principle

• Pneumatic Shockwave Technology

Compressed air accelerates a projectile inside the applicator. Its kinetic energy is transferred to the selected applicator head, producing mechanical pressure waves that are transmitted to the target area through direct contact with the skin.

• Pulsed Magnetic Technology

Electrical energy stored in capacitors is rapidly discharged through a coil, generating a pulsed magnetic field. The magnetic field can pass through clothing and reach the selected body area without requiring direct skin contact.

Pneumatic Shockwave + Pulsed Magnetic Field = Integrated Physical Therapy & Recovery Platform

6. Application Scenarios

Physiotherapy Centers: Professional physical therapy and body-care programs involving common muscle and joint areas.

Sports Recovery Centers: Post-exercise recovery, muscle relaxation and sports-related body-care programs.

Rehabilitation Facilities: Professional rehabilitation-support programs according to operator assessment and application requirements.

Wellness & Body Care Centers: Programs focusing on relaxation, mobility and physical recovery.

Sports Clubs & Training Facilities: Recovery-support programs for physically active users after training.

7. Main Application Areas

Shoulder — Muscle relaxation and recovery support

Back & Lumbar Area — Body relaxation and mobility support

Elbow & Wrist — Localized physical therapy support

Hip & Thigh — Sports recovery and muscle care

Knee — Joint-area recovery support

Ankle & Foot — Post-exercise and mobility support

8. Technical Parameters

9. Shockwave Applicator Options

10. Competitive Advantages

1. Two Technologies in One System: Combines pneumatic shockwave and pulsed magnetic technology in one professional platform.
2. Up to 7 Tesla Magnetic Output: Adjustable 1-100Hz magnetic frequency supports flexible parameter selection.
3. Wide Shockwave Adjustment: 0.5-10Bar pressure and 1-20Hz frequency settings.
4. Seven Shockwave Heads: Multiple head sizes for different contact areas and body regions.
5. Contact + Non-Contact Applications: Shockwave uses direct applicator contact; the magnetic applicator can work without direct skin contact.
6. Large Touchscreen Operation: 15.6-inch interface for parameter adjustment and treatment-area selection.
7. Multiple Body Areas: Supports professional applications around shoulder, elbow, wrist, back, hip, thigh, knee, ankle and foot.
8. Professional Vertical Design: Integrated wheeled workstation suitable for clinics and professional therapy rooms.

11. Operator-Friendly Design

The EM39 interface supports body-area selection and parameter adjustment. Shockwave frequency and pressure can be adjusted independently. The magnetic system provides Auto and Manual modes with adjustable intensity, time and frequency, helping professional operators configure programs according to application requirements.

12. Recommended For

Physiotherapy Clinics • Rehabilitation Centers • Sports Recovery Centers • Wellness Centers • Fitness & Training Facilities • Professional Body Care Studios • Equipment Distributors • Rehabilitation Equipment Importers

13. Safety & Maintenance

For professional use, operators should follow the supplied user manual and select parameters according to the application area and individual condition. Install the unit in a stable, dry and ventilated environment. Keep approximately 30cm of space around the machine for cooling and clean the working head after use. Review the contraindications and restricted application areas in the user manual before operation.

14. FAQ

Q: What technologies does the GMS-EM39 combine?

A: It combines pneumatic shockwave technology with pulsed magnetic technology in one integrated system.

Q: What is the maximum magnetic induction intensity?

A: Up to 7 Tesla.

Q: What is the magnetic frequency range?

A: 1-100Hz.

Q: What is the shockwave output range?

A: Shockwave frequency is 1-20Hz and pressure is adjustable from 0.5-10.0Bar.

Q: How many shockwave heads are included?

A: Seven sizes: 6mm, 10mm, 15mm, 20mm, 25mm, 30mm and 40mm.

Q: Does the magnetic applicator require direct skin contact?

A: No. It can be positioned close to the selected area while the user remains clothed.

Q: Which body areas can be selected?

A: Wrist, elbow, shoulder, hip, thigh, lumbar area, knee, foot/ankle and other listed areas in the operating interface.

Q: Is the machine suitable for sports recovery applications?

A: It is positioned for professional physical therapy, sports recovery and rehabilitation-support environments.

Q: What voltage does the machine support?

A: 110V / 220V.

Q: Is professional operation recommended?

A: Yes. The equipment should be operated according to the user manual with suitable parameters for the intended application.

15. Why Choose GMS-EM39?

2 Technologies in 1 System • Up to 7 Tesla Magnetic Intensity • 1-100Hz Magnetic Frequency • 0.5-10Bar Shockwave Adjustment • 1-20Hz Shockwave Frequency • 7 Interchangeable Applicator Heads • 15.6-inch Touch Screen • Contact + Non-Contact Applications • Multiple Body Area Selection • Professional Vertical Design
